EDITION G

compact – clever - unique

weiter

May we introduce...

Compact, Powerful and Versatile

Extremely robust housing parts made of aluminum and steel, quick and easy to adapt to the respective installation situation. These are just some of the features of our new printer series EDITION G. Convince yourself of the versatility of the most propably smallest kiosk printer in a modular design.

  • Modular system with various configurations
  • Direct door assembly without disadvantages or additional components possible
  • The smallest configuration already works with just one housing component

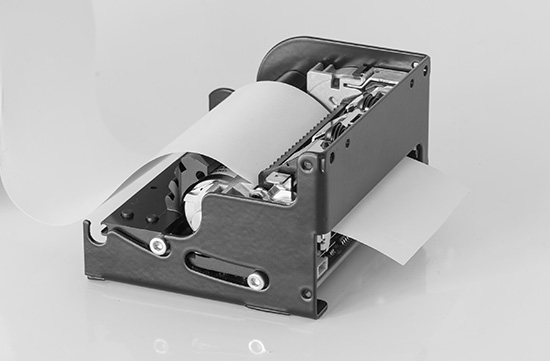

Paper feeding could not be easier

One-handed Paper Feeding

By means of "Easy Feeding", the Kiosk Printer Edition G enables the paper feed with only one hand. Unlike conventional kiosk printers, the thermal paper can be inserted to the printer in a very simple way.

  • Change of paper rolls in a few seconds
  • No annoying wrinkling when changing rolls
  • Easy handling even for untrained staff

Cleaning the thermal head in just a few seconds

Cotton Swab & Cleanser, no more

Thanks to a completely new and revolutionary arrangement of thermal head and housing, the cleaning of the thermal head is quite simple. Invest a maximum of 20 seconds and increase the life time of your printer thanks to "EASY CLEAN".

  • Cleaning the thermal head in just 20 seconds
  • Easy operation thanks to "EASY CLEAN"
  • Increase the lifetime

Paper storage easy and flexible

Paper Roll Holder and Sensors

The modular concept allows a quick adjustment in terms of position and size of the required paper stock. Optional available paper roll holders can be easily adapted and sensors for monitoring a low paper stock are also implemented.

  • Paper roll holder with brake and damping
  • Flexible arrangement of paper rolls
  • Roll size (AD) from 50.0 mm to 200.0 mm

Specifications

Barcodes
EAN 13, EAN 8, UPCA, UPCE, 2/5 Interleave, 2/5 Industrial, 2/5 Matrix, 2/5 Datalogic, Codabar, Code 39, Code 128.

External Sensors
Near-End Sensor, Paper-Jam Sensor.

Font Size
8 x 20, 10 x 20, 12 x 20, 16 x 24.

Options
Paper presenter with retract function, paper winder.

Note
If you have special requirements with regard to software commands, paper quality, current consumption or mechanical adaptation, we are happy to support you.

Printer mechanism made by

Fujitsu
  • Paper width
    Paper width:
    58.0 mm / 60.0 mm
  • Printing speed
    Printing speed:
    220 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    full and partial cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    325 g
  • Operating temperature
    Operating temperature:
    -20 / +70 °C
  • Paper width
    Paper width:
    58.0 mm / 60.0 mm
  • Printing speed
    Printing speed:
    150 mm/s
  • Supply voltage
    Supply voltage:
    10.5 - 15.0 VDC
  • Paper cutter
    Paper cutter:
    full and partial cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    325 g
  • Operating temperature
    Operating temperature:
    -20 / +70 °C
  • Paper width
    Paper width:
    80.0 mm
  • Printing speed
    Printing speed:
    220 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    full and partial cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    380 g
  • Operating temperature
    Operating temperature:
    -20 / +70 °C
