EDITION M

Thermal Printer Mechanism

more

Thermal printer mechanism with up to 112 mm paper width

Thermal printer mechanism with up to 112 mm paper width

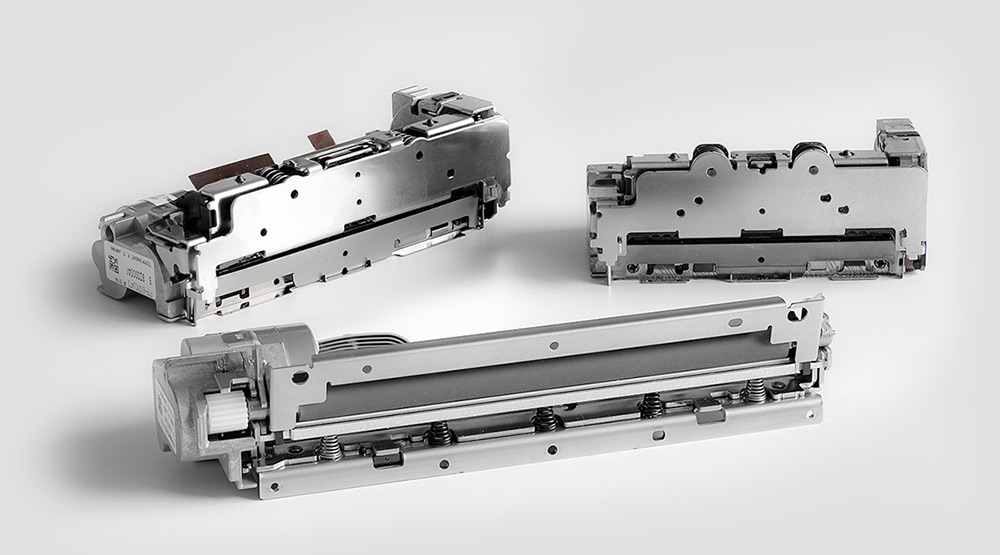

Robust thermal printer mechanism

For a wide range of applications.
Optinal with paper cutter.

  • For battery operation or 24.0 VDC
  • Paper width 57 mm to 112 mm
  • RS232 or USB interface

Printing speed up to 220 mm/s

Printing speed up to 220 mm/s

Controller

Controller with RS232 & USB interface. Supports all EDITION M series printer mechanism.

  • Advanced function for presenter
  • Near-End Sensor, Paper-Jam Sensor
  • Barcode printing

Get your sample now!
Test the revolution: EDITION LINE

Get your sample now

Specification

  • Paper width
    Paper width:
    58.0 mm / 60.0 mm
  • Druckbreite
    Printing width:
    54 mm
  • Printing width
    Printing speed:
    220 mm/s
  • Paper cutter
    Paper cutter:
    Optional
  • Paper thickness
    Paper thickness:1
    60 - 150 μm
  • Supply voltage
    Supply voltage:2
    24.0 VDC
  • Interface
    Interface:
    RS232 & USB

1 60 -100 μm with auto cutter
2 Contact us for 10.0 - 15.0 VDC

  • Paper width
    Paper width:
    80.0 mm
  • Printing width
    Printing width:
    72 mm
  • Druckgeschwindigkeit
    Printing speed:
    220 mm/s
  • Paper cutter
    Paper cutter:
    -
  • Paper thickness
    Paper thickness:1
    60 - 150 μm
  • Supply voltage
    Supply voltage:2
    24.0 VDC
  • Interface
    Interface:
    RS232 & USB

1 60 -100 μm with auto cutter
2 Contact us for 10.0 - 15.0 VDC

  • Paper width
    Paper width:
    112.0 mm
  • Printing width
    Printing width:
    104 mm
  • Printing speed
    Printing speed:
    200 mm/s
  • Paper cutter
    Paper cutter:
    Optional
  • Paper thickness
    Paper thickness:1
    60 - 150 μm
  • Supply voltage
    Supply voltage:s2
    24.0 VDC
  • Interface
    Interface:
    RS232 & USB

1 60 -100 μm with auto cutter
2 Contact us for 10.0 - 15.0 VDC
