EDITION VaryX S80P

Compact - Solid - Flexible

weiter

Specification

Specification

Barcodes
EAN 13, EAN 8, UPCA, UPCE, 2/5 Interleave, 2/5 Industrial, 2/5 Matrix, 2/5 Datalogic, Codabar, Code 39, Code 128.

External Sensors
Near-End Sensor, Paper-Jam Sensor, Black Mark Sensor.

Font Size
8 x 20, 10 x 20, 12 x 20, 16 x 24.

Options
Paper presenter with retract function, paper winder.

Note
If you have special requirements with regard to software commands, paper quality, current consumption or mechanical adaptation, we are happy to support you.

  • Papierbreite
    Paper width:
    58.0 mm / 60.0 mm
  • Druckgeschwindigkeit
    Printing speed:
    200 mm/s
  • Spannung
    Supply voltage:
    24.0 VDC
  • Papierschnitt
    Paper cutter:
    full cut
  • Schnittstellen
    Interface:
    RS232 & USB
  • Gewicht
    Presenter/Retraction speed:
    >1000 mm/s
  • Einsatztemperatur
    Operating temperature:
    0 / +50 °C
  • Papierbreite
    Paper width:
    80.0 mm
  • Druckgeschwindigkeit
    Printing speed:
    200 mm/s
  • Spannung
    Supply voltage:
    24.0 VDC
  • Papierschnitt
    Paper cutter:
    full cut
  • Schnittstellen
    Interface:
    RS232 & USB
  • Gewicht
    Presenter/Retraction speed:
    >1000 mm/s
  • Einsatztemperatur
    Operating temperature:
    0 / +50 °C

Dimensions EDITION VaryX S80P [mm]

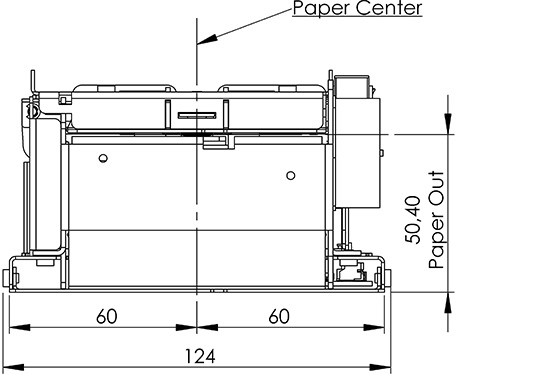

View Front (cover down)

View Front (cover down)

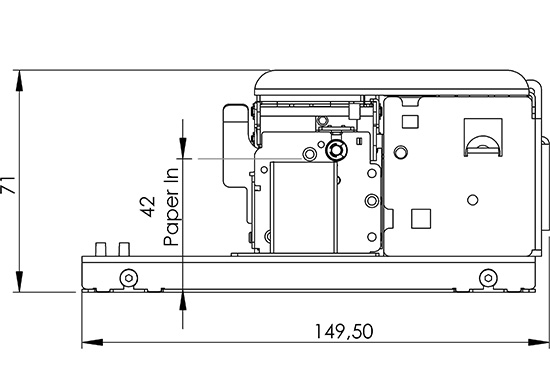

View Side

View Side

View Front

View Front
