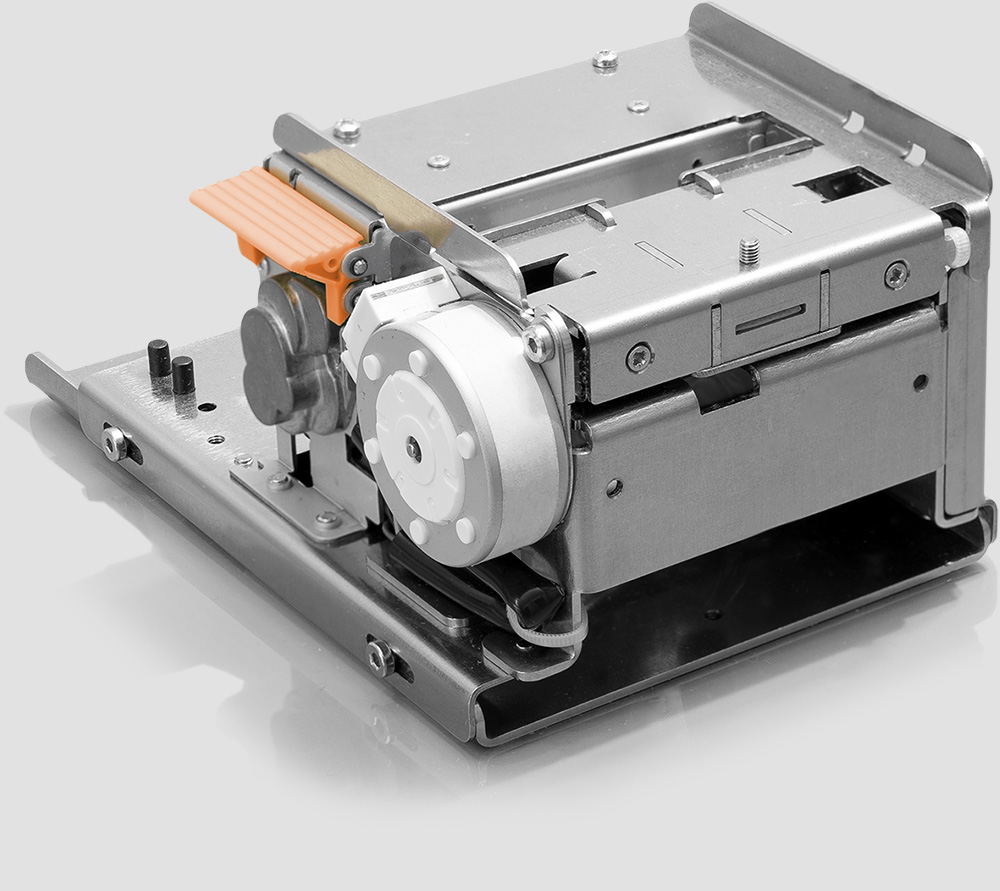

EDITION VaryX RP

Compact - Solid - Flexible

more

Loop Presenter with Retract-Function

Loop presenter with retract-function

Setting new Standards

The revolutionary performance of the new Kiosk Printer with brushless Presenter Technology.

  • Direct drive presenter (gearless)
  • Available for paper widths of 57 mm, 60 mm and 80 mm
  • With ticket retraction function

Direct Drive Presenter (gearless)

Direct drive presenter (gearless)

Brushless Presenter Technology

The revolutionary performance of the new Kiosk Printer with brushless Presenter Technology.

  • 1000 mm/s Presenting/­retraction speed
  • Quick access for maintenance
  • Paper thickness up to 100 µm

3rd generation with Flip-up Cover

3rd generation with flip-up cover

Loading paper has never been so easy

The paper can now be inserted very easily thanks to the Flip-up cover.

  • Flip-up Cover design for easy paper loading
  • Quick access in case of paper jam
  • Cleaning the thermal head in just a few seconds

Get your sample now!
Test the revolution: EDITION LINE

Get your sample now

Specification

Specification

Barcodes
EAN 13, EAN 8, UPCA, UPCE, 2/5 Interleave, 2/5 Industrial, 2/5 Matrix, 2/5 Datalogic, Codabar, Code 39, Code 128.

External Sensors
Near-End Sensor, Paper-Jam Sensor, Black Mark Sensor.

Font Size
8 x 20, 10 x 20, 12 x 20, 16 x 24.

Options
Paper presenter with retract function, paper winder.

Note
If you have special requirements with regard to software commands, paper quality, current consumption or mechanical adaptation, we are happy to support you.

  • Paper width
    Paper width:
    57.0 mm / 60.0 mm
  • Printing speed
    Printing speed:
    200 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut
  • Interface
    Interface:
    RS232 & USB
  • Retraction speed
    Presenter/­Retraction speed:
    >1000 mm/s
  • Weight
    Weight:
    735 g
  • Operating temperature
    Operating temperature:
    0 / +50 °C
  • Paper width
    Paper width:
    80.0 mm
  • Printing speed
    Printing speed:
    200 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut
  • Interface
    Interface:
    RS232 & USB
  • Retraction speed
    Presenter/­Retraction speed:
    >1000 mm/s
  • Weight
    Weight:
    850 g
  • Operating temperature
    Operating temperature:
    0 / +50 °C

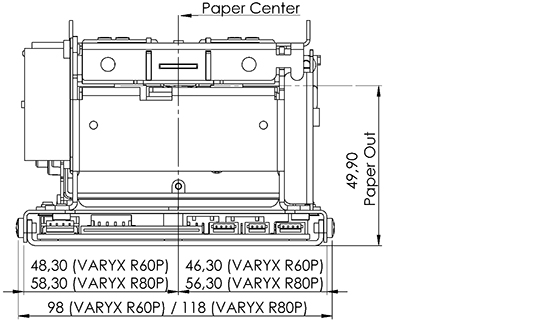

Dimensions EDITION VaryX RP [mm]

View front (cover down)

View front (cover down)

View side

View side

View front (cover up)

View front (cover up)
