May we introduce...

Modular kiosk printer

Compact, Powerful and Versatile

Extremely robust housing parts made of aluminum and steel, quick and easy to adapt to the respective installation situation. These are just some of the features of our new printer series EDITION G. Find out how to benefit from one of the smallest, modular and most flexible kiosk printers in the market.

  • Modular system with various configurations
  • Direct door assembly without disadvantages or additional components possible
  • The smallest configuration already works with just one housing component

Paper feeding could not be easier

One-handed paper feeding

One-handed Paper Feeding

By means of "Easy Feeding", the Kiosk Printer Edition G enables the paper feed with only one hand. Unlike conventional kiosk printers, the thermal paper can be inserted to the printer in a very simple way.

  • Change of paper rolls in a few seconds
  • No annoying wrinkling when changing rolls
  • Easy handling even for untrained staff

Cleaning the thermal head in just a few seconds

Cleaning the thermal head in just a few seconds

Cotton Swab & Cleanser, no more

Thanks to a completely new and revolutionary arrangement of thermal head and housing, the cleaning of the thermal head is quite simple. Invest a maximum of 20 seconds and increase the life time of your printer thanks to "EASY CLEAN".

  • Cleaning the thermal head in just 20 seconds
  • Easy operation thanks to "EASY CLEAN
  • Increase the lifetime

Paper storage easy and flexible

Paper roll holder and sensors

Paper Roll Holder and Sensors

The modular concept allows a quick adjustment in terms of position and size of the required paper stock. Optional available paper roll holders can be easily adapted and sensors for monitoring a low paper stock are also implemented.

  • Paper roll holder with brake and damping
  • Flexible arrangement of paper rolls
  • Roll size (AD) from 50.0 mm to 200.0 mm

Get your sample now!
Test the revolution: EDITION G

Get your sample now
so small!

Specification

Specification

Barcodes
EAN 13, EAN 8, UPCA, UPCE, 2/5 Interleave, 2/5 Industrial, 2/5 Matrix, 2/5 Datalogic, Codabar, Code 39, Code 128.

External Sensors
Near-End Sensor, Paper-Jam Sensor.

Font Size
8 x 20, 10 x 20, 12 x 20, 16 x 24.

Options
aper presenter with retract function, paper winder.

Note
If you have special requirements with regard to software commands, paper quality, current consumption or mechanical adaptation, we are happy to support you.

Printer mechanism made by

  • Paper width
    Paper width:
    57.0 mm / 60.0 mm
  • Printing speed
    Printing speed:
    220 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut & partial cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    325 g
  • Operating temperature
    Operating temperature:
    -20 / +70 °C
  • Paper width
    Paper width:
    57.0 mm / 60.0 mm
  • Printing speed
    Printing speed:
    150 mm/s
  • Supply voltage
    Supply voltage:
    10.5 - 15.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut & partial cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    325 g
  • Operating temperature
    Operating temperature:
    -20 / +70 °C
  • Paper width
    Paper width:
    80.0 mm
  • Printing speed
    Printing speed:
    220 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut & partial cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    380 g
  • Operating temperature
    Operating temperature:
    -20 / +70 °C

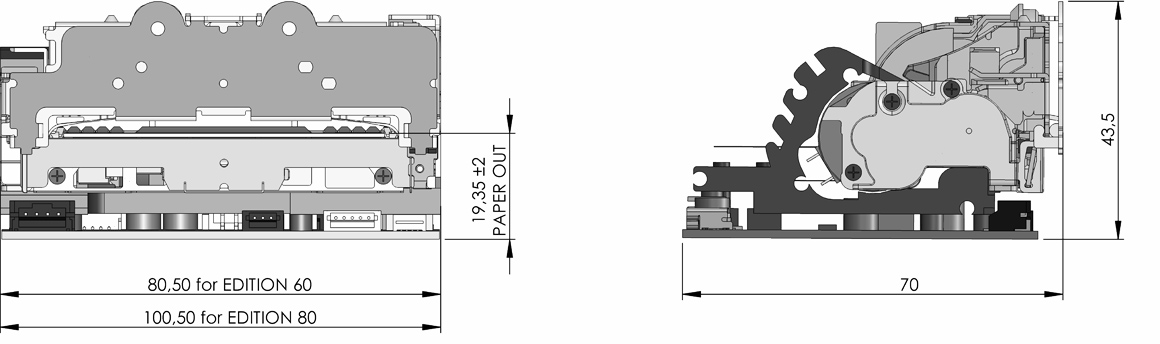

Dimensions EDITION G [mm]

View Front/Side (with frame)

View Front/Side (with frame)

View Front/Side (without frame)

View Front/Side (without frame)
