EDITION GP

Kiosk Printer with Presenter

more

Loop Presenter with Retract-Function

Loop presenter with retract-function

Compact. Solid. Flexible.

Robust kiosk printer with loop presenter for use in self-service kiosk systems and ticketing applications. Manufactured from stainless steel with numerous options for paper roll size and paper width.

  • Direct drive presenter (gearless)
  • Available for paper widths of 57 mm, 60 mm and 80 mm
  • With ticket retraction function

Maintenance done quickly

Maintenance done quickly

Clever designed

Enabling maintanance in the shortest possible time means great advantages.

  • Easy maintenance thanks to "EASY CLEAN"
  • Just one click to open the presenter in case of paper jam
  • Loop up or loop down

Paper storage easy and flexible

Paper storage easy and flexible

Paper roll holder and sensors

The modular concept allows a quick adjustment in terms of position and size of the required paper stock. Optional available paper roll holders can be easily adapted and sensors for monitoring a low paper stock are also implemented.

  • Paper roll holder with brake and damping
  • Flexible arragenment of paper rolls
  • Roll size (AD) from 50.0 mm to 200.0 mm

Get your sample now!
Test the revolution: EDITION LINE

Get your sample now

Specification

Specification

Barcodes
EAN 13, EAN 8, UPCA, UPCE, 2/5 Interleave, 2/5 Industrial, 2/5 Matrix, 2/5 Datalogic, Codabar, Code 39, Code 128.

External Sensors
Near-End Sensor, Paper-Jam Sensor.

Font Size
8 x 20, 10 x 20, 12 x 20, 16 x 24.

Options
Paper presenter with retract function, paper winder.

Note
If you have special requirements with regard to software commands, paper quality, current consumption or mechanical adaptation, we are happy to support you.

Printer mechanism made by

  • Paper width
    Paper width:
    57.0 mm / 60.0 mm
  • Printing speed
    Printing speed:
    220 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    570 g
  • Operating temperature
    Operating temperature:
    -20 / +60 °C
  • Paper width
    Paper width:
    80.0 mm
  • Printing speed
    Printing speed:
    220 mm/s
  • Supply voltage
    Supply voltage:
    24.0 VDC
  • Paper cutter
    Paper cutter:
    Full cut
  • Interface
    Interface:
    RS232 & USB
  • Weight
    Weight:
    625 g
  • Operating temperature
    Operating temperature:
    -20 / +60 °C

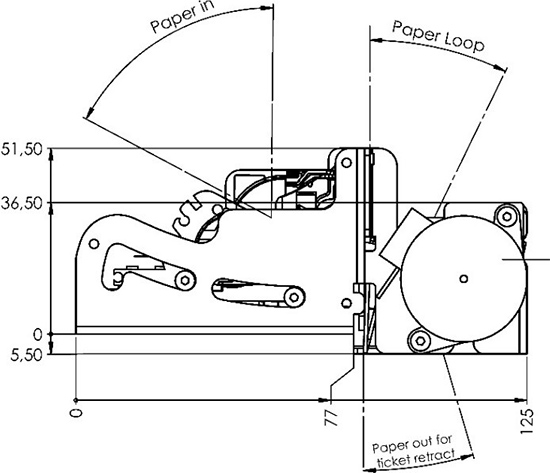

Dimensions EDITION GP [mm]

View front

View front

View side

View side
